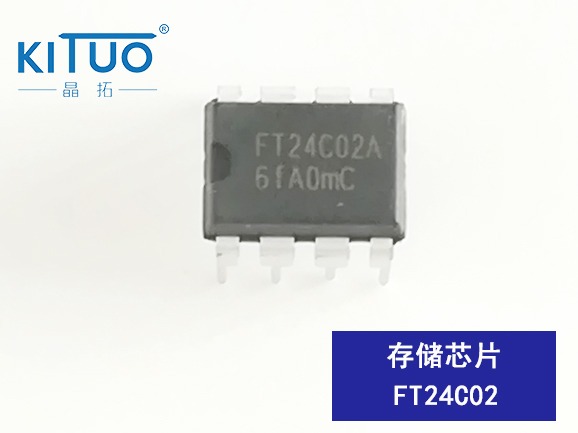

產品型號:FT24C02
FEATURES
● Low voltage and low power operations
          FT24C02A-FXX:VCC=1.8V to 5.5V,Industrial temperature range(-40to85)
●Maximum Standby current<1uA(typically 0.02uA and 0.06uA@1.8V and5.5V respectively
●16 bytes page write operation allowed    允許16字節頁寫入操作
●Partial page write operation allowed
●Internally orqanized:2568(2×K)
●Standard 2-wire bi-directional serial interface
●Schmitt trigger,filtered inputs for noise protection
●Self-timed programming cycle(5ms maximum)
●1MHz(5V),400kHz(1.8V,2.5V,2.7V)Compatibility
●Automatic erase before write operation
●High reliability:typically 1,000,000 cycles endurance
●100 years data retention
●Standard 8-pin DIP/SOP/MSOP/TSSOP/DFN and 5-pin SOT-23/TSOT-23Pb-free packzges
DESCRIPTION
The FT24C02A-FXX is 2048 bits of serial Electrical Erasable and Programmable Read Only Memory,commonly known as EEPROM.They are organized as 256 words of 8 bits(1 byte)each.The devices are fabricated with proprietary advanced CMOS process for low power and low voltage applications.These devices are available in standard 8-lead DIP,8-lead SOP,8-lead MSOP,8-lead TSSOP,8-lead DFN and 5-lead SOT-23/TSOT-23 packages.A standard 2-wire serial interface is used to address all read and write functions.Our extended Vcc range(1.8V to 5.5V)devices enables wide spectrum of applications.
